HINGES
Showing all 16 results
-

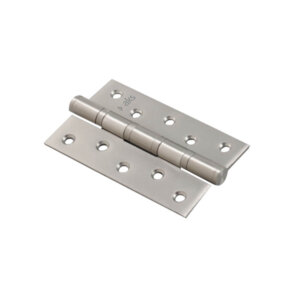

MORE INFOFOUR BALL BEARING HINGES
ARTICLE NO. SIZE (in inches) SIZE (in mm) KNUCKLE DIAMETER NO.OF SCREW HOLES SCREW SIZE L x W x T L x W x T (in mm) HGFB041230P 4 x 3 x 1/8 102 x 76 x 3.00 14 8 10 x 32 HGFB051230P 5 x 3 x 1/8 127 x 76 x 3.00 14 10 10 x 32 HGFB061230P 6 x 3 x 1/8 152 x 76 x 3.00 14 10 10 x 32 -

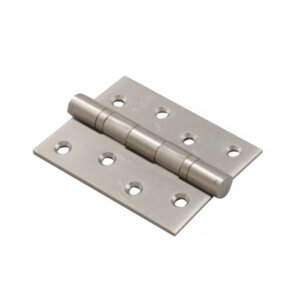

MORE INFODOUBLE BALL BEARING HINGES
ARTICLE NO. SIZE (in inches) SIZE (in mm) KNUCKLE DIAMETER NO.OF SCREW HOLES SCREW SIZE L x W x T L x W x T (in mm) HGTB031125 3 x 2.25 x1/10 75 x 57 x 2.50 12 6 7 x 25 HGTB041225 4 x 3 x 1/10 100 x 76 x 2.50 12 8 8 x 32 HGTB051225 5 x 3 x 1/10 125 x 76 x 2.50 12 8 8 x 32 HGTB041230 4 x 3 x 1/8 102 x 76 x 3.00 14 8 10 x 32 HGTB051230 5 x 3 x 1/8 127 x 76 x 3.00 14 10 10 x 32 HGTB041530 4 x 3.5 x 1/8 102 x 89 x 3.00 14 8 10 x 32 HGTB051530 5 x 3.5 x 1/8 127 x 89 x 3.00 14 10 10 x 32 -
MORE INFOPARLIAMENT MOON TYPE HINGES
ARTICLE NO. SIZE (in inches) SIZE (in mm) KNUCKLE DIAMETER NO.OF SCREW HOLES SCREW SIZE L x W x T L x W x T (in mm) HGPM030403G 3 x 1/8 75 x 3.0 12.00 8.00 8×32 HGPM040403G 4 x 1/8 100 x 3.0 12.00 6.00 10×32 HGPM050403G 5 x 1/8 125 x 3.0 12.00 6.00 10×32 HGPM060403G 6 x 1/8 150 x 3.0 12.00 6.00 10×32 -

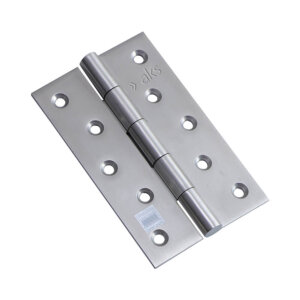

MORE INFOSUPREME HEAVY PIN BUTT HINGES
ARTICLE NO. SIZE (in inches) SIZE (in mm) KNUCKLE DIAMETER NO.OF SCREW HOLES SCREW SIZE L x W x T L x W x T (in mm) Screw Holes Size HGPB031125G 3 x (1×1) x 1/10 75 x (19×19) x 2.50 10.7 6 8 x 32 HGPB041125G 4 x (1×1) x 1/10 100 x (24×24) x 2.50 10.7 8 10 x 32 HGPB051125G 5 x (1×1) x 1/10 125 x (27×27) x 2.50 10.7 8 10 x 32 HGPB061125G 6 x (1×1) x 1/10 150 x (27×27) x 2.50 10.7 8 10 x 32 HGPB041225G 4 x (1.25×1.25) x 1/10 100 x (32×32) x 2.50 10.7 8 10 x 32 HGPB051225G 5 x (1.25×1.25) x 1/10 125 x (32×32) x 2.50 10.7 8 10 x 32 -
MORE INFOSEAMLESS (Railway) HINGES
ARTICLE NO. SIZE (in inches) SIZE (in mm) KNUCKLE DIAMETER NO.OF SCREW HOLES SCREW SIZE L x W x T L x W x T (in mm) HGSR031018MT 3″ x 1″ x 1/14 75 x (19.5×19.5) x 1.80 7.7 6 7×25 HGSR041119MT 4″ x 1″ x 1/13 100 x (24×24) x 1.90 9.5 8 8×32 HGSR051119MT 5″ x 1″ x 1/13 125 x (27×27) x 1.90 9.5 8 8×32 HGSR031025MT 3″ x 1″ x 1/10 (Reg.) 75 x (19.5×19.5) x 2.50 9.5 6 7×25 HGSR031125MT 3″ x 1″ x 1/10 (Wide) 75 x (25×25) x 2.50 10.7 6 8×32 HGSR041125MT 4″ x 1″ x 1/10 100 x (25×25) x 2.50 10.7 8 8×32 HGSR051125MT 5″ x 1″ x 1/10 125 x (27×27) x 2.50 10.7 8 8×32 HGSR061125MT 6″ x 1″ x 1/10 150 x (27×27) x 2.50 10.7 8 8×32 HGSR041225MT 4″ x 1.25″ x 1/10 100 x (32×32) x 2.50 10.7 8 8×32 HGSR051225MT 5″ x 1.25″ x 1/10 125 x (32×32) x 2.50 10.7 8 8×32 HGSR041130MT 4″ x 1″ x 1/8 100 x (25×25) x 3.00 11.7 8 8×32 HGSR051130MT 5″ x 1″ x 1/8 125 x (27×27) x 3.00 11.7 10 8×32 HGSR041230MT 4″ x 1.25″ x 1/8 102 x (31×31) x 3.00 11.7 8 10×32 HGSR051230MT 5″ x 1.25″ x 1/8 127 x (32×32) x 3.00 11.7 10 10×32 HGSR061230MT 6″ x 1.25″ x 1/8 152 x (32×32) x 3.00 11.7 10 10×32 HGSR041330MT 4″ x 1.25″ x 1/8 (H) 102 x (30×30) x 3.00 14.0 8 10×32 HGSR051330MT 5″ x 1.25″ x 1/8 (H) 127 x (30×30) x 3.00 14.0 10 10×32 HGSR051535MT 5″ x 1.25″ x 1/6 (SH) 127 x (30×30) x 4.00 15.0 10 10×32 HGSR041530MT 4″ x 1.5″ x 1/8 102 x (37×37) x 3.00 14.0 8 10×32 HGSR051530MT 5″ x 1.5″ x 1/8 127 x (37×37) x 3.00 14.0 10 10×32 HGSR061530MT 6″ x 1.5″ x 1/8 152 x (37×37) x 3.00 14.0 10 10×32 HGSR081530MT 8″ x 1.5″ x 1/8 200 x (37×37) x 3.00 14.0 12 10×32 -
MORE INFOGRANITE HINGES
ARTICLE NO. SIZE (in inches) SIZE (in mm) KNUCKLE DIAMETER NO.OF SCREW HOLES SCREW SIZE L x W x T L x W x T (in mm) Screw Holes Size HGGR032025G 3 x (1) x 1/10 (Reg.) 75 x 20 x 2.5 9.00 5.00 7×30 HGGR040125G 4 x (1) x 1/10 100 x 25 x 2.5 11.00 5.50 8×32 HGGR050125G 5 x (1) x 1/10 125 x 25 x 2.5 11.00 5.50 8×32 HGGR041203G 4 x (1.25) x 1/8 100 x 31 x 3.0 12.00 6.00 10×32 HGGR051203G 5 x (1.25) x 1/8 125 x 31 x 3.0 12.00 6.00 10×32 HGGR061203G 6 x (1.25) x 1/8 150 x 31 x 3.0 12.00 6.00 10×32 HGGR041503G 4 x (1.5) x 1/8 100 x 38 x 3.0 14.00 6.00 10×32 HGGR051503G 5 x (1.5) x 1/8 125 x 38 x 3.0 14.00 6.00 10×32 HGGR061503G 6 x (1.5) x 1/8 150 x 38 x 3.0 14.00 6.00 10×32 -
MORE INFOSEAMLESS “W” HINGES
ARTICLE NO. SIZE (in inches) SIZE (in mm) KNUCKLE DIAMETER NO.OF SCREW HOLES SCREW SIZE L x W x T L x W x T (in mm) HGSW501906MT 2″ x (3/4″x1/4″) x 1/14 50 x (19×6) x 1.80 8.0 6 7×25 HGSW751906MT 3″ x (3/4″x1/4″) x 1/14 75 x (19×6) x 1.80 8.0 6 7×25 HGSW751913MT 3″ x (3/4″x1/2″) x 1/14 75 x (19×13) x 1.80 8.0 6 7×25 HGSW751919MT 3″ x (3/4″x3/4″) x 1/14 75 x (19×19) x 1.80 8.0 6 7×25 -
MORE INFOSEAMLESS ”L” HINGES
ARTICLE NO. SIZE (in inches) SIZE (in mm) KNUCKLE DIAMETER No. OF SCREW HOLES SCREW SIZE L x W x T L x W x T (in mm) HGRL034217G 3 x (1/2×1/4) x 1/14 75 x (13×6) x 1.80 7.5 6 7 x 25 HGRL034417G 3 x (1/2×1/4) x 1/14 75 x (13×13) x 1.80 7.5 6 7 x 25 HGRL034617G 3 x (1/2×1/4) x 1/14 75 x (13×19) x 1.80 7.5 6 7 x 25 HGRL034817G 3 x (1/2×1/4) x 1/14 75 x (13×25) x 1.80 7.5 6 7 x 25 -
MORE INFOSUPREME HEAVY RIVETED BUTT HINGES
ARTICLE NO. SIZE (in inches) SIZE (in mm) KNUCKLE DIAMETER NO.OF SCREW HOLES SCREW SIZE L x W x T L x W x T (in mm) HGPB031125P 3 x (1×1) x 1/10 75 x (24×24) x 2.50 9.0 6 7 x 25 HGPB041125P 4 x (1×1) x 1/10 100 x (24×24) x 2.50 10.7 8 8 x 32 HGPB051125P 5 x (1×1) x 1/10 125 x (27×27) x 2.50 10.7 8 8 x 32 HGPB061125P 6 x (1×1) x 1/10 150 x (27×27) x 2.50 10.7 8 8 x 32 HGPB041225P 4 x (1.25×1.25) x 1/10 100 x (32×32) x 2.50 10.7 8 8 x 32 HGPB051225P 5 x (1.25×1.25) x 1/10 125 x (32×32) x 2.50 10.7 8 8 x 32 -
MORE INFOSUPREME MEDIUM RIVETED BUTT HINGES
ARTICLE NO.
SIZE (in inches) SIZE (in mm) KNUCKLE DIAMETER NO. OF SCREW HOLES SCREW SIZE L x W x T L x W x T (in mm) HGRB031118S 3 x (1×1) x 1/14 75 x (19.5×19.5) x 1.80 7.7 6 7 x 25 HGRB041119S 4 x (1×1) x 1/13 100 x (24×24) x 1.90 9.5 8 8 x 32 HGRB051119S 5 x (1×1) x 1/13 125 x (27×27) x 1.90 9.5 8 8 x 32 -
MORE INFOUNEQUAL FLAP (CUT) HINGE
ARTICLE NO. SIZE(in inches) SIZE (in mm) KNUCKLE DIAMETER No. OF SCREW HOLES SCREW SIZE L x W x T L x W x T (in mm) HGPU034617G 3 x (1/2×3/4) x 1/15 75 x (19×13) x 1.70 6.5 6 6x 19 HGPU044617G 4 x (1/2×3/4) x 1/15 100 x (19×13) x 1.70 6.5 8 6x 19 HGPU035317G 3 x (5/8×3/8) x 1/15 75 x (15×10) x 1.70 6.5 6 6x 19
